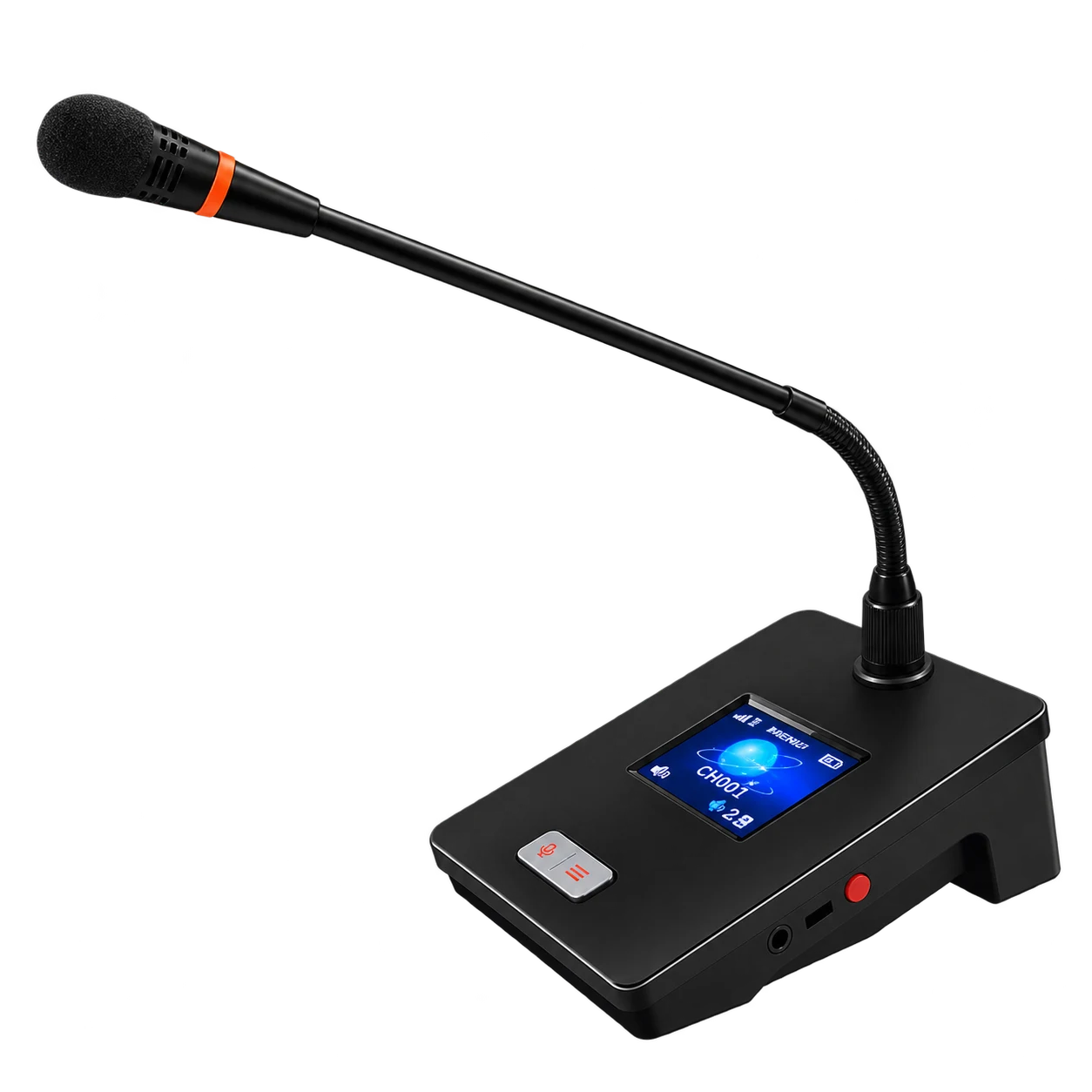

Synoveta SV-WWC-M809D 5G Wi-Fi Wireless Delegate Unit
Delegate Unit
Manufacturer referencePricingOn request
Recommended useBoardrooms, council chambers, government offices, training rooms and professional meeting spaces
- High-definition 2.4-inch full-color display showing microphone status, current time and date, speaking time, speaking timer, signal strength, battery power, ID number and other information.
- 48 kHz sampling rate; the microphone powers on and connects in about 5 seconds.
- Intelligent fault detection for access-point failure, host communication failure and low signal strength.
- Speaking-timer and timed-speaking functions.
Installation planning
Cabling, mounting and system integration guidance.
Delivery support
Project scheduling and delivery coordination across Bangladesh.
After-sales support
Technical assistance after installation and handover.
Product highlights
High-definition 2.4-inch full-color display showing microphone status, current time and date, speaking time, speaking timer, signal strength, battery power, ID number and other information.
48 kHz sampling rate; the microphone powers on and connects in about 5 seconds.
Intelligent fault detection for access-point failure, host communication failure and low signal strength.
Speaking-timer and timed-speaking functions.
Voice-control sensitivity and shutdown time can be adjusted through PC software.
5-band EQ adjustment for optimizing the sound effect of all microphones.
Supports sign-in; sign-in can be set and initiated through PC software.
Uses 128-bit AES encryption and WPA/WPA2 wireless security to prevent eavesdropping and unauthorized access.
Built-in rechargeable lithium battery provides approximately 10 hours of working time in speech mode.
Includes one 3.5 mm stereo headphone jack.
Supports Type-C program upgrades and 18 W fast charging; the microphone can be charged through a power bank.
Product overview
5G Wi-Fi wireless delegate discussion unit with a full-color display and rechargeable battery.
Technical specifications
Final specifications can vary by selected brand, model and project configuration.
- Brand
- Synoveta
- Model
- SV-WWC-M809D
- Product type
- Delegate Unit
- System technology
- Wi-Fi Wireless Conference
- Application
- Boardrooms, council chambers, government offices, training rooms and professional meeting spaces
- Availability
- Contact for availability
- Microphone type
- Cardioid directional electret
- Frequency response
- 80 Hz–16 kHz
- Microphone input impedance
- 1 kΩ
- Sensitivity
- −40 ± 1.5 dB (0 dB = 1 V/Pa at 1 kHz)
- Maximum SPL
- 100 dB (THD >3%)
- Signal-to-noise ratio
- >80 dB(A)
View 13 more specifications
- Crosstalk
- >70 dB
- Dynamic range
- >80 dB
- THD
- <0.1%
- Maximum power consumption
- 1.5 W
- Power supply
- Lithium battery
- Charging method
- Charge through the Type-C interface connected to the charging box
- Color
- Black
- Sign-in function
- Button sign-in
- Display
- 2.4 inches
- Installation method
- Desktop
- Wireless frequency range
- 5.15–5.85 GHz
- Working time in speech mode
- 10 hours
- Microphone rod length
- 400 mm long black microphone rod
