Product selection
Model matching based on your room, quantity and workflow.
Conference System

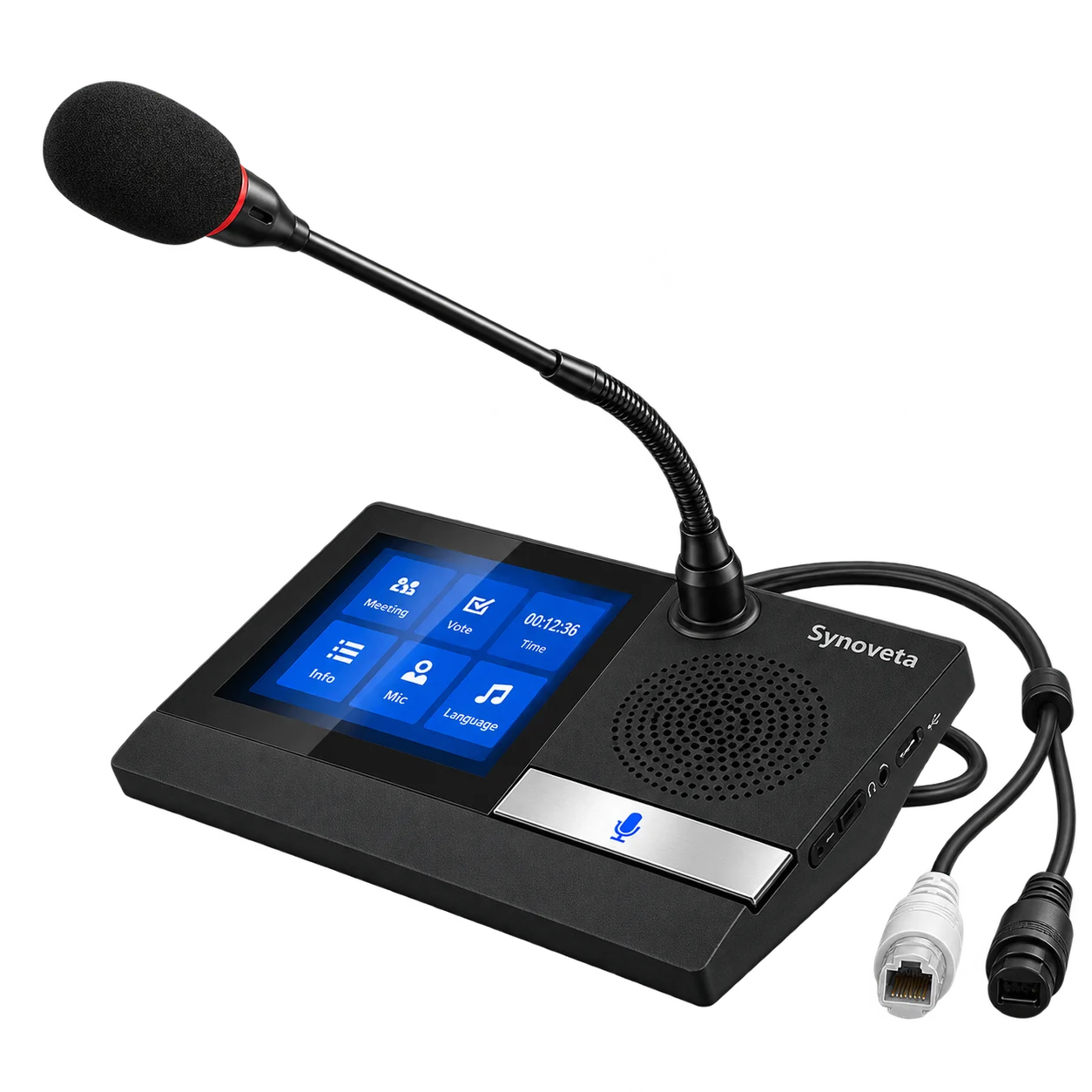

Synoveta SV-2001DL Wired Full-Digital Conference Delegate Unit
Delegate Unit
Manufacturer referencePricingOn request
Recommended useBoardrooms, council chambers, government offices, training rooms and professional meeting spaces
- 4-inch full-color capacitive touchscreen.
- High-resolution graphical interface.
- Meeting sign-in and voting.
- Real-time result display.
Installation planning
Cabling, mounting and system integration guidance.
Delivery support
Project scheduling and delivery coordination across Bangladesh.
After-sales support
Technical assistance after installation and handover.
Product highlights
4-inch full-color capacitive touchscreen.
High-resolution graphical interface.
Meeting sign-in and voting.
Real-time result display.
Displays current speaker name.
Displays seat number.
Displays waiting-to-speak list.
Supercardioid condenser microphone.
Full-digital signal transmission.
Speaking-status indicator in microphone stem.
Dual RJ45 interfaces.
Daisy-chain / hand-in-hand connection.
Video tracking.
Individual microphone gain, EQ and AGC adjustment.
Centralized 24 V power supply.
CAT6 network-cable connectivity.
Product overview
SV-2001DL is a wired full-digital conference delegate unit featuring a 4-inch full-color capacitive touch screen, high-quality condenser microphone and digital network connectivity. It supports meeting sign-in, voting, real-time meeting information, video tracking and individual audio adjustment through the conference host.
Technical specifications
Final specifications can vary by selected brand, model and project configuration.
- Brand
- Synoveta
- Model
- SV-2001DL
- Product type
- Delegate Unit
- System technology
- Digital Wired Conference
- Application
- Boardrooms, council chambers, government offices, training rooms and professional meeting spaces
- Availability
- Contact for availability
- Display Type
- Full-Color Capacitive Touch Screen
- Display Size / Resolution
- 4 inch / 480 × 480 RGB
- Power Supply
- 24 V DC, Centralized from Conference Host
- Power Consumption
- ≤ 3.5 W
- Audio Encoding
- MP3 / PCM / ADPCM
- Audio Sampling / Bit Depth
- 8 kHz - 48 kHz / 16-bit
View 10 more specifications
- Audio Bit Rate
- 8 kbps - 320 kbps
- SNR / Frequency Response
- ≥ 83 dB / 40 Hz - 18 kHz
- Microphone
- Condenser Microphone; Supercardioid
- Headphone Output
- Ø3.5 mm Stereo Jack
- Storage
- Built-in SPI Flash
- Connection
- CAT6 Network Cable; 2 × RJ45
- Topology
- Daisy-Chain / Hand-in-Hand Connection
- Video Tracking
- Supported
- Audio Adjustment
- Individual Microphone Gain, EQ & AGC via Conference Host
- Operating Environment
- 0°C - 45°C; ≤ 90% RH, Non-Condensing
Related products
Compare other conference products. Confirm series compatibility before ordering.
Synoveta SV-6517C Digital Wired Conference Chairman Unit
Built-in speaker and volume control.
View details

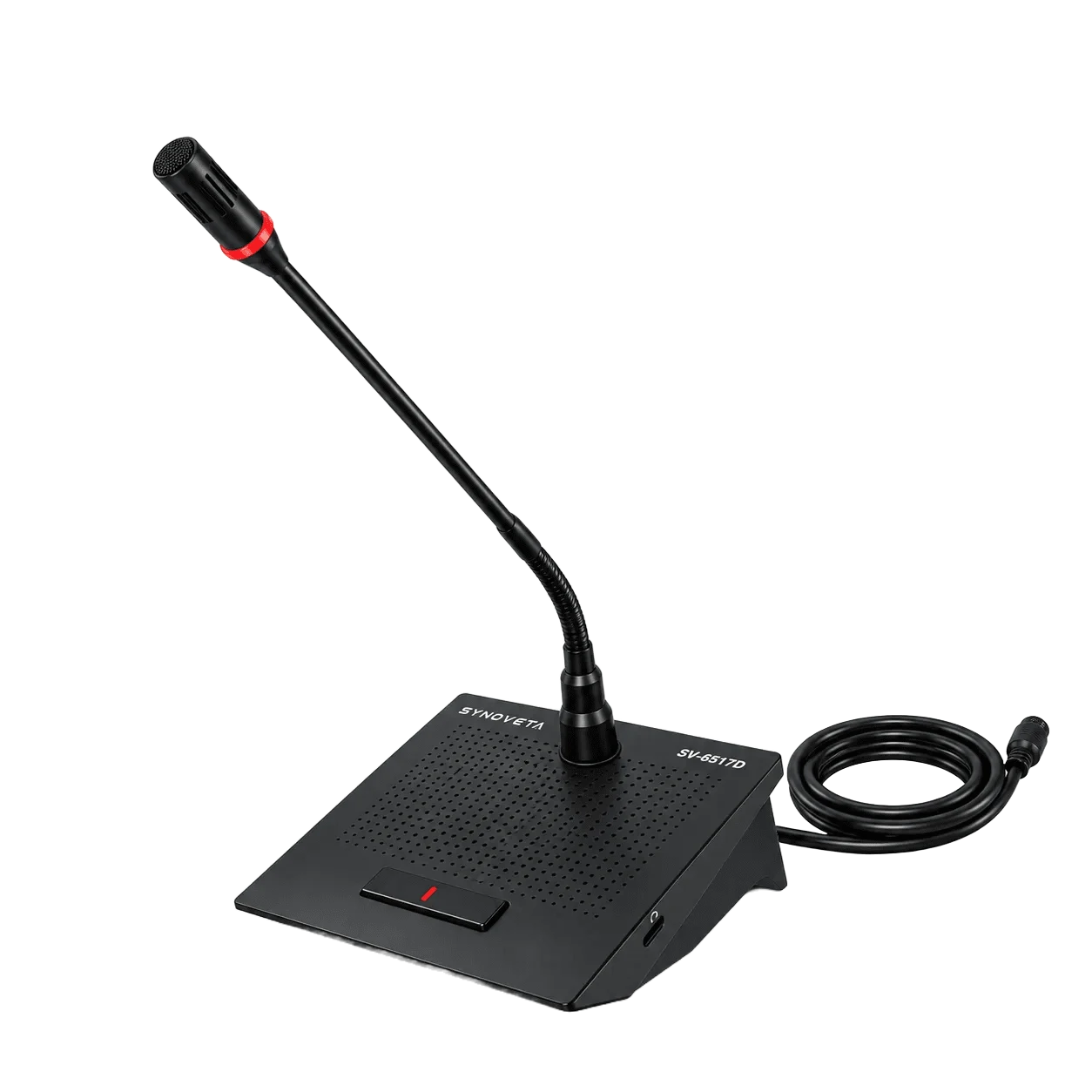

Synoveta SV-6517D Digital Wired Conference Delegate Unit
Built-in speaker and volume control.
View details

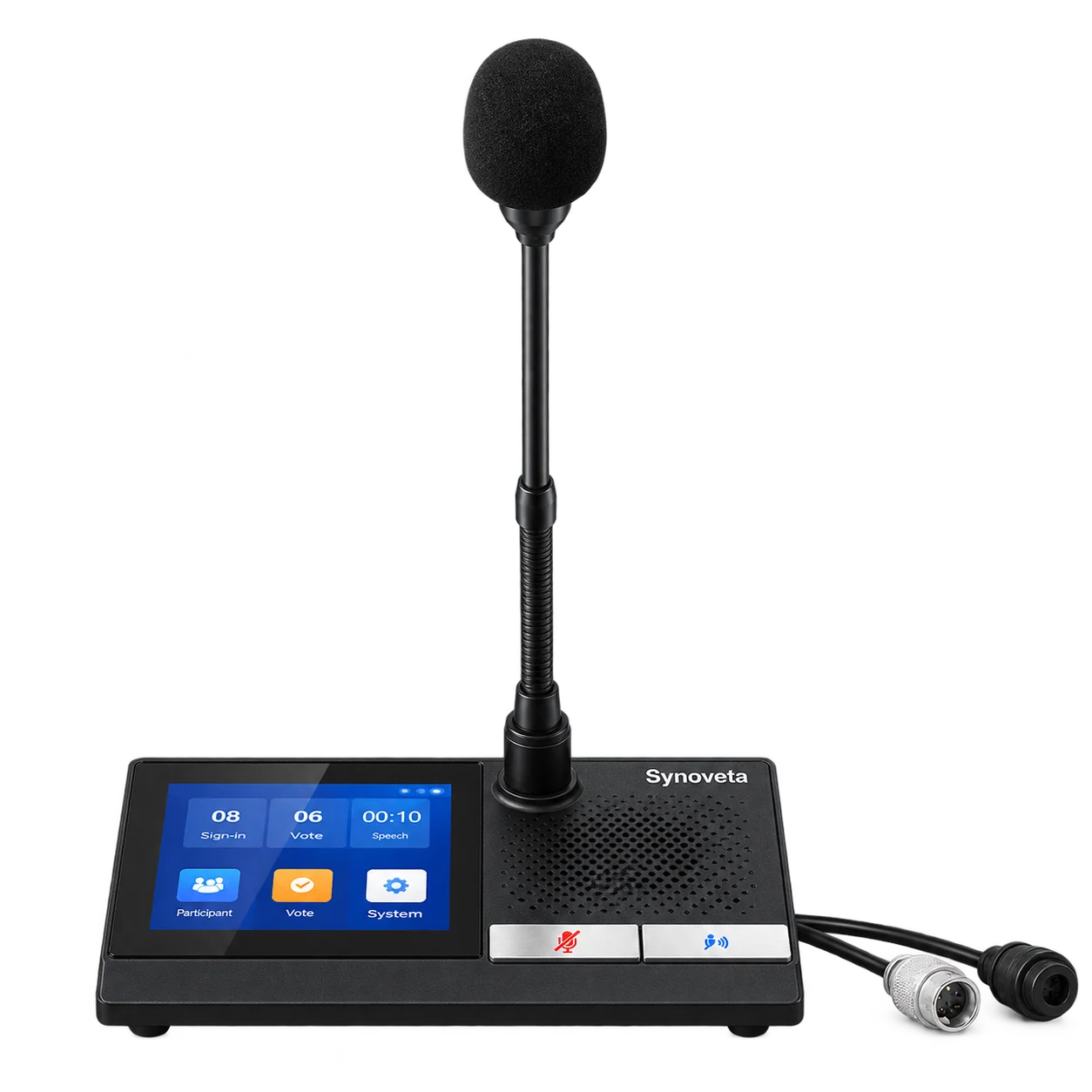

Synoveta SV-2001CL Wired Full-Digital Conference Chairman Unit
4-inch full-color capacitive touchscreen.
View details

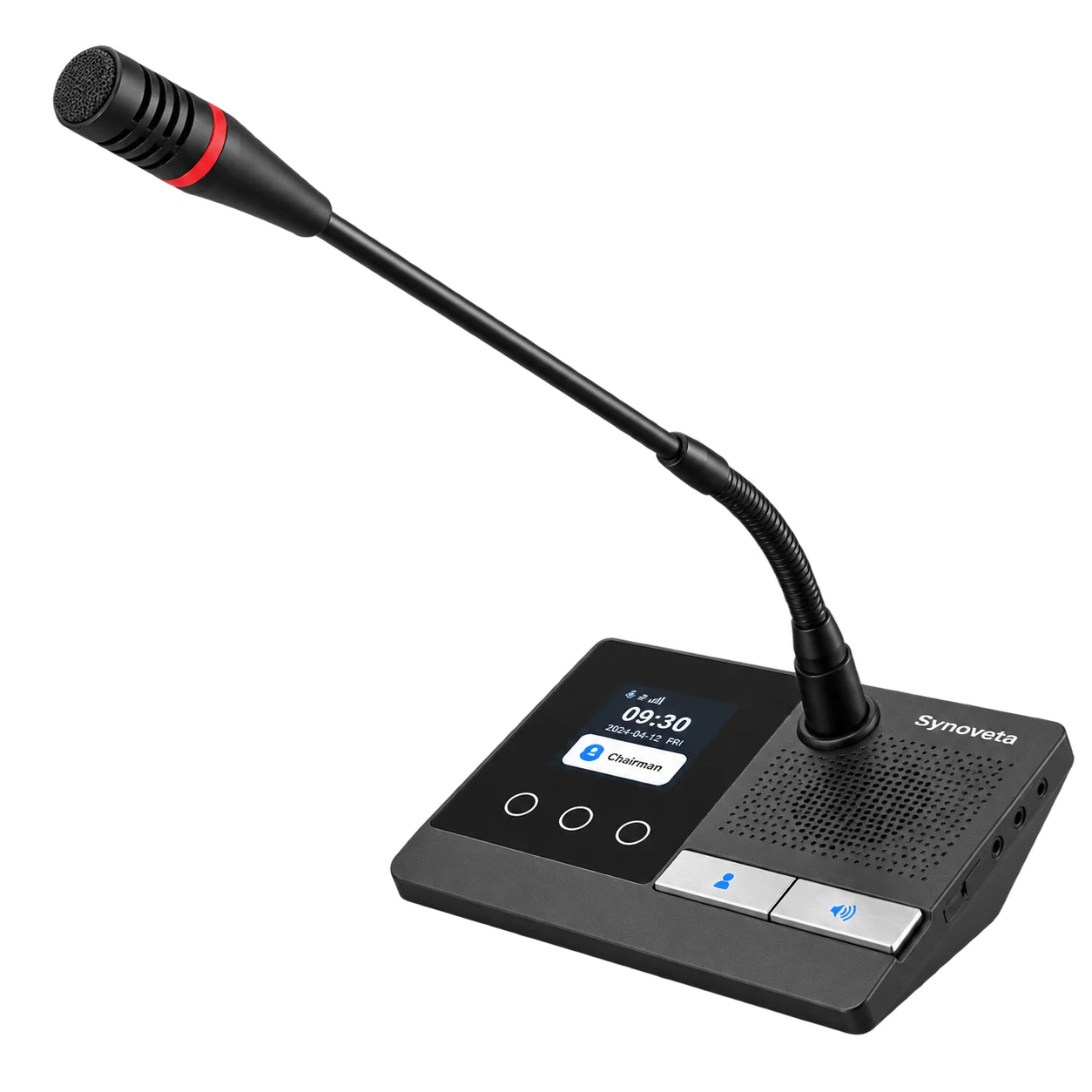

Synoveta SV-3002CL Wired Full-Digital Conference Chairman Unit
