Product selection
Model matching based on your room, quantity and workflow.
Conference System

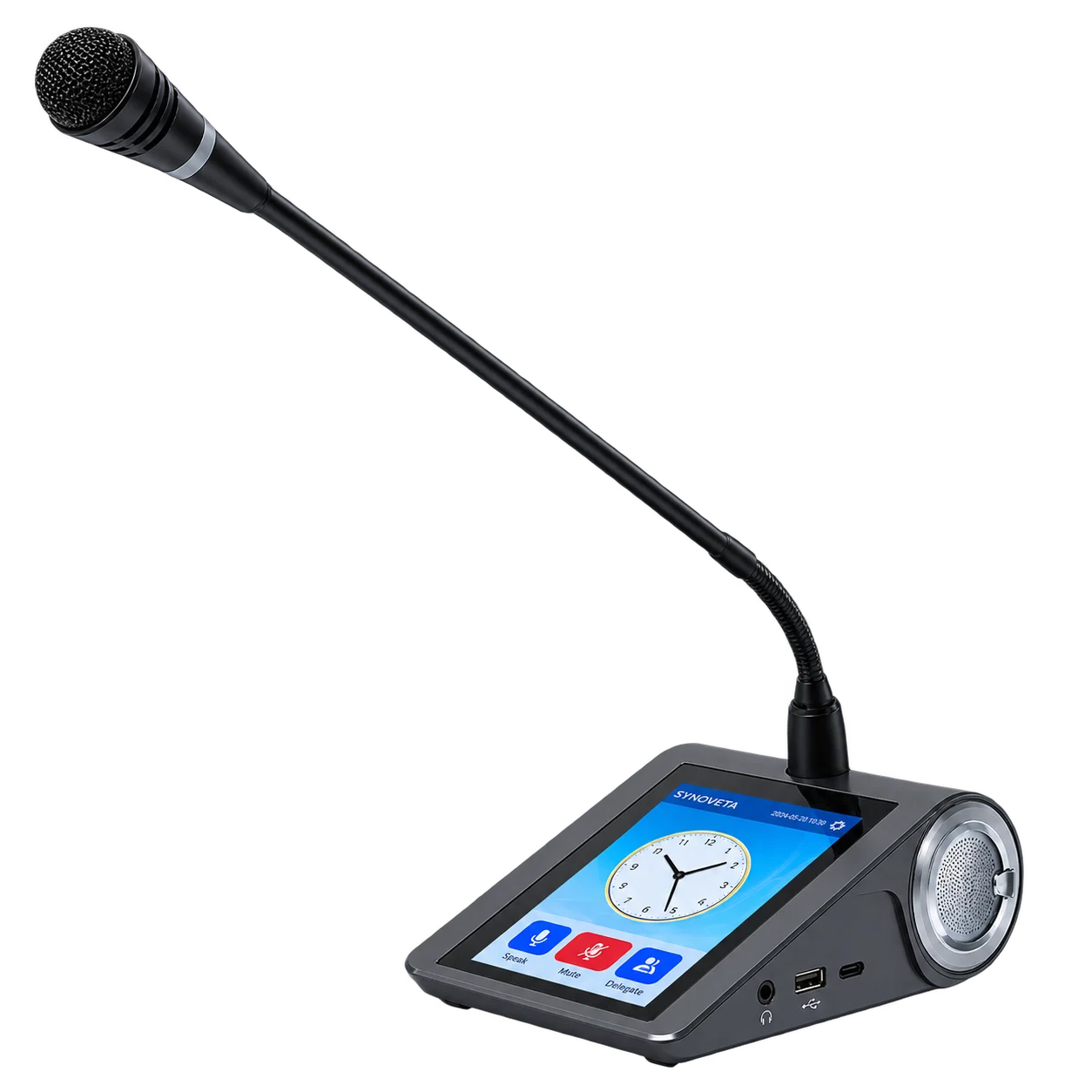

Synoveta SV-DWC-M805D Full Digital Wired Delegate Unit
Delegate Unit
Manufacturer referencePricingOn request
Recommended useBoardrooms, council chambers, government offices, training rooms and professional meeting spaces
- Standard CAT6e connection with RJ45 connector; 48 kHz sampling rate and 80 Hz-16 kHz bandwidth.
- Original 5.0-inch IPS touch-screen interface with a low-key black design.
- Supports PC software microphone control and voice-control functions.
- Chairman priority function can close the speech of delegate units.
Installation planning
Cabling, mounting and system integration guidance.
Delivery support
Project scheduling and delivery coordination across Bangladesh.
After-sales support
Technical assistance after installation and handover.
Product highlights
Standard CAT6e connection with RJ45 connector; 48 kHz sampling rate and 80 Hz-16 kHz bandwidth.
Original 5.0-inch IPS touch-screen interface with a low-key black design.
Supports PC software microphone control and voice-control functions.
Chairman priority function can close the speech of delegate units.
TCP/IP protocol support including ICMP, HTTP, UDP, TCP and IGMP; supports PING packet function.
Optional built-in 5 W fidelity speaker with howling suppression; the speaker automatically mutes when the microphone is on.
Supports speech timing, timed speech and countdown speech functions.
Adjustable voice-control sensitivity and 5-band EQ adjustment.
Supports 63+1-channel simultaneous interpretation plus sign-in, voting and election functions.
Product overview
Full digital wired delegate unit with a 5-inch IPS touch screen and advanced conference functions.
Technical specifications
Final specifications can vary by selected brand, model and project configuration.
- Brand
- Synoveta
- Model
- SV-DWC-M805D
- Product type
- Delegate Unit
- System technology
- Digital Wired Conference
- Application
- Boardrooms, council chambers, government offices, training rooms and professional meeting spaces
- Availability
- Contact for availability
- Microphone type
- Electret condenser microphone
- Microphone core directivity
- Cardioid
- Frequency response
- 80 Hz-16 kHz
- Microphone input impedance
- 1 kΩ
- Sensitivity
- −46 ± 2 dB (0 dB = 1 V/Pa at 1 kHz)
- Maximum SPL
- 120 dB (THD >3%)
View 12 more specifications
- Signal-to-noise ratio
- >80 dB(A)
- Crosstalk
- >70 dB
- Dynamic range
- >80 dB
- THD
- <0.3%
- Maximum power consumption
- 3 W
- Network port
- 2, multi-level network port
- Power supply
- Conference host
- Color
- Silver gray
- Dimensions (L × W × H)
- 166 × 109 × 128 mm
- Microphone rod length and color
- Square microphone rod 215 mm black; long microphone rod 415 mm
- Installation method
- Desktop
- Weight
- 0.75 kg
