Product selection
Model matching based on your room, quantity and workflow.
Conference System
Synoveta SV-3002DL Wired Full-Digital Conference Delegate Unit
Delegate Unit
Manufacturer referencePricingOn request
Recommended useBoardrooms, council chambers, government offices, training rooms and professional meeting spaces
- 1.77-inch full-color TFT display.
- Three multi-functional capacitive touch keys.
- Meeting sign-in.
- Voting.
Installation planning
Cabling, mounting and system integration guidance.
Delivery support
Project scheduling and delivery coordination across Bangladesh.
After-sales support
Technical assistance after installation and handover.
Product highlights
1.77-inch full-color TFT display.
Three multi-functional capacitive touch keys.
Meeting sign-in.
Voting.
Real-time result display.
Supercardioid condenser microphone.
Full-digital signal transmission.
Speaking-status indicator light.
PTZ video tracking.
Individual microphone gain, EQ and AGC adjustment.
Centralized power supply.
CAT6A network connectivity.
Product overview

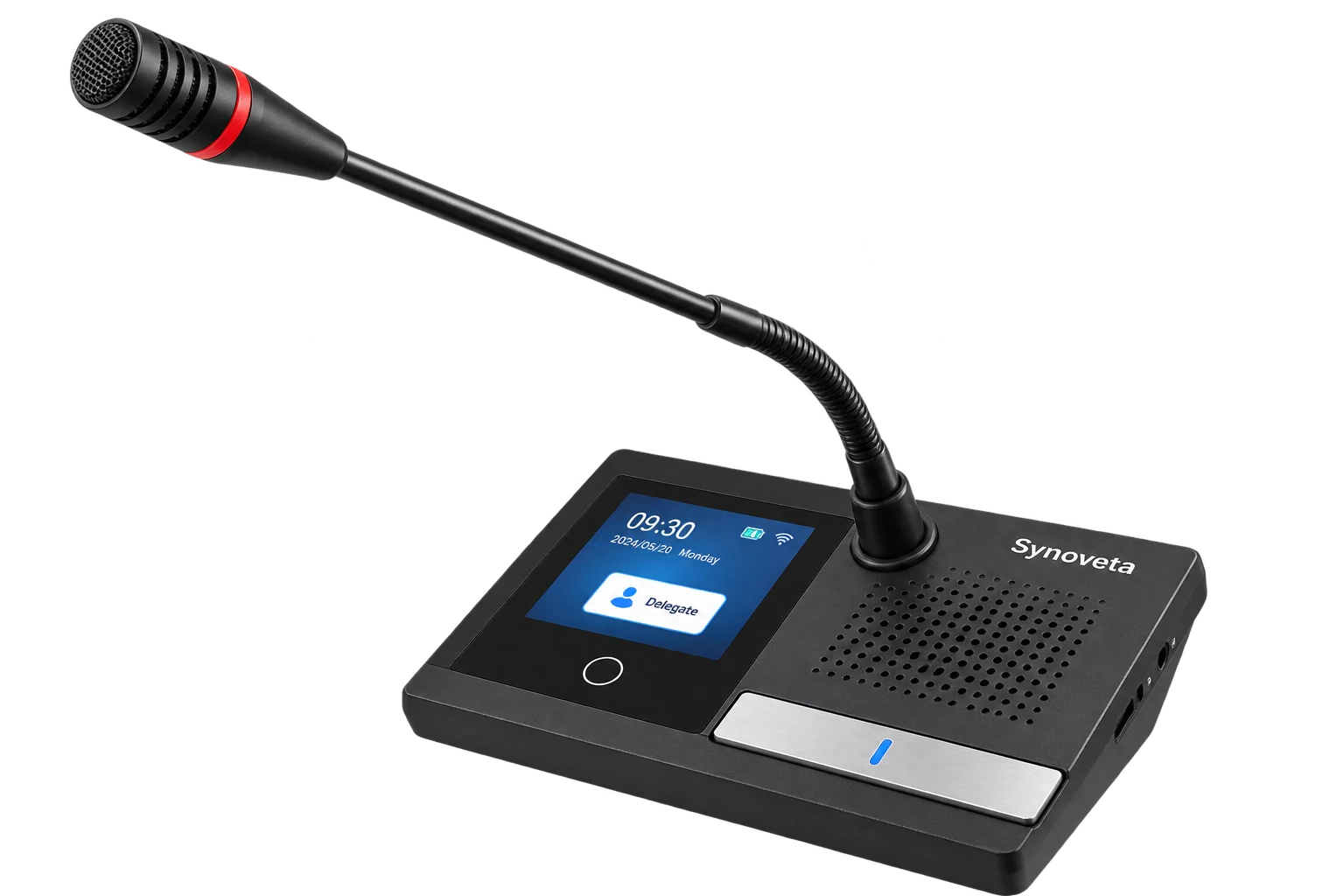

SV-3002DL is a wired full-digital conference delegate unit with a 1.77-inch full-color TFT display, capacitive touch controls and a gold-plated condenser microphone. It supports meeting sign-in, voting, full-digital audio transmission, PTZ video tracking and centralized host-based audio adjustment and power distribution.
Technical specifications
Final specifications can vary by selected brand, model and project configuration.
- Brand
- Synoveta
- Model
- SV-3002DL
- Product type
- Delegate Unit
- System technology
- Digital Wired Conference
- Application
- Boardrooms, council chambers, government offices, training rooms and professional meeting spaces
- Availability
- Contact for availability
- Display Type
- Full-Color TFT Display
- Display Size / Resolution
- 1.77 inch / 160 × 128 pixels
- Power Supply
- 24 V DC, Centralized from Conference Host
- Power Consumption
- ≤ 2 W
- Audio Encoding
- MP3 / PCM / ADPCM
- Audio Sampling / Bit Depth
- 8 kHz - 48 kHz / 16-bit
View 12 more specifications
- Audio Bit Rate
- 8 kbps - 320 kbps
- SNR / Frequency Response
- ≥ 83 dB / 40 Hz - 18 kHz
- Server File Broadcast SNR
- ≥ 90 dB; 40 Hz - 18 kHz
- Microphone
- Gold-Plated Condenser; 14 mm head; Supercardioid
- Headphone Output
- Ø3.5 mm Stereo Jack
- Connection
- CAT6A Network Cable; 2 × RJ45
- Topology
- Daisy-Chain / Hand-in-Hand Connection
- Video Tracking
- Supported
- Audio Adjustment
- Individual Microphone Gain, EQ & AGC via Conference Host
- Operating Environment
- 0°C - 45°C; ≤ 90% RH, Non-Condensing
- Dimensions
- 220 × 98.8 × 107.6 mm
- Materials
- Pickup Cavity: Aluminum; Base: ABS
