Product selection
Model matching based on your room, quantity and workflow.
LED Display

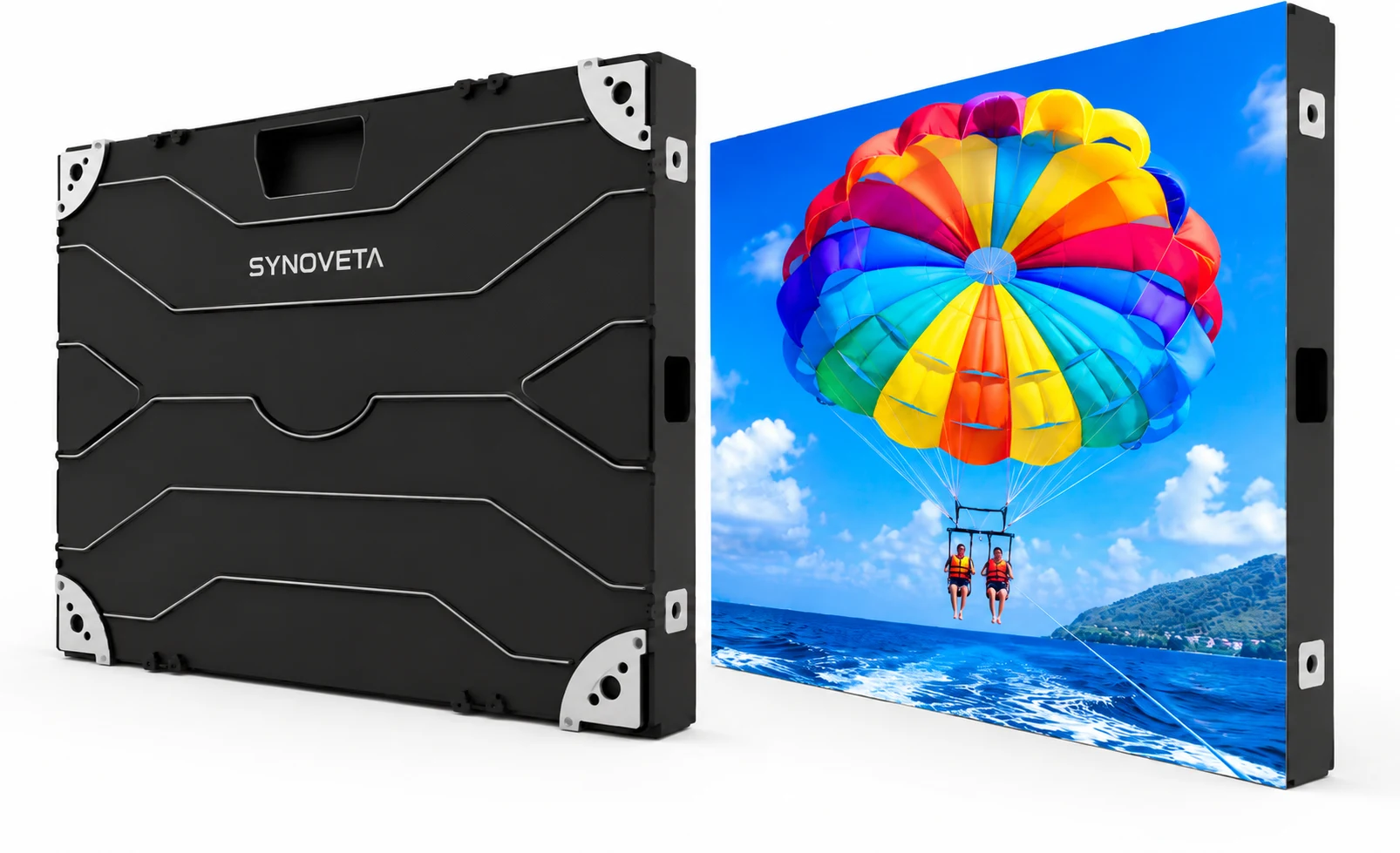

Synoveta CX-0153 Indoor COB LED Display Cabinet
Indoor full flip-chip COB LED display cabinet
PricingTk 24,580.00 (per sq.ft, indicative indoor price)
Recommended useControl rooms, corporate spaces, broadcast studios, conference rooms, exhibitions, showrooms and commercial displays
- Full flip-chip COB technology for indoor display walls
- 1.538 mm pixel pitch and 416 × 312 pixels cabinet resolution
- ≥650 nits brightness and ≥12,000:1 contrast ratio
- ≥7680 Hz refresh rate and 160° horizontal / vertical viewing angle
Installation planning
Cabling, mounting and system integration guidance.
Delivery support
Project scheduling and delivery coordination across Bangladesh.
After-sales support
Technical assistance after installation and handover.
Product highlights
Full flip-chip COB technology for indoor display walls
1.538 mm pixel pitch and 416 × 312 pixels cabinet resolution
≥650 nits brightness and ≥12,000:1 contrast ratio
≥7680 Hz refresh rate and 160° horizontal / vertical viewing angle
Product overview
CX-0153 is a Synoveta CX Series indoor full flip-chip COB LED cabinet with 1.538 mm pixel pitch, 416 × 312 pixels cabinet resolution, ≥650 nits white-balance brightness and ≥7680 Hz refresh rate. Each 640 × 480 × 48 mm die-cast aluminum cabinet contains six modules.
Technical specifications
Final specifications can vary by selected brand, model and project configuration.
- Brand
- Synoveta
- Model
- CX-0153
- Product type
- Indoor COB LED display cabinet
- Pixel pitch
- 1.538 mm
- Module resolution (W × H)
- 208 × 104 pixels
- Pixel density
- 422,500 dots/m²
- Cabinet resolution (W × H)
- 416 × 312 pixels
- Single-module power consumption
- ≤16 W
- Single-module current
- 3.6 A
- LED configuration
- Full Flip-chip COB
- Module dimensions (W × H × D)
- 320 × 160 × 13.8 mm
- Module weight
- 0.5 ± 0.05 kg
View 21 more specifications
- Module area
- 0.0512 m²
- Cabinet dimensions (W × H × D)
- 640 × 480 × 48 mm
- Modules per cabinet (W × H)
- 2 × 3
- Cabinet area
- 0.3072 m²
- Cabinet weight
- 3.6 ± 0.1 kg
- Cabinet material
- Die-cast aluminum
- White-balance brightness
- ≥650 nits
- Color temperature
- 10,000-12,000 K, adjustable
- Viewing angle (H / V)
- 160° / 160°
- Brightness uniformity
- ≥95%
- Contrast ratio
- ≥12,000:1
- Power supply voltage
- DC 4.5-5 V
- Drive mode
- 43S constant-current
- Frame rate
- 60 Hz
- Refresh rate
- ≥7680 Hz
- Pixel structure
- Full Flip-chip COB
- Rated lifetime
- 100,000 hours
- Operating temperature
- −20 to +50 °C
- Storage temperature
- −20 to +60 °C
- Operating humidity
- 10-80% RH, non-condensing
- Storage humidity
- 10-85% RH, non-condensing
