Product selection
Model matching based on your room, quantity and workflow.
Conference System

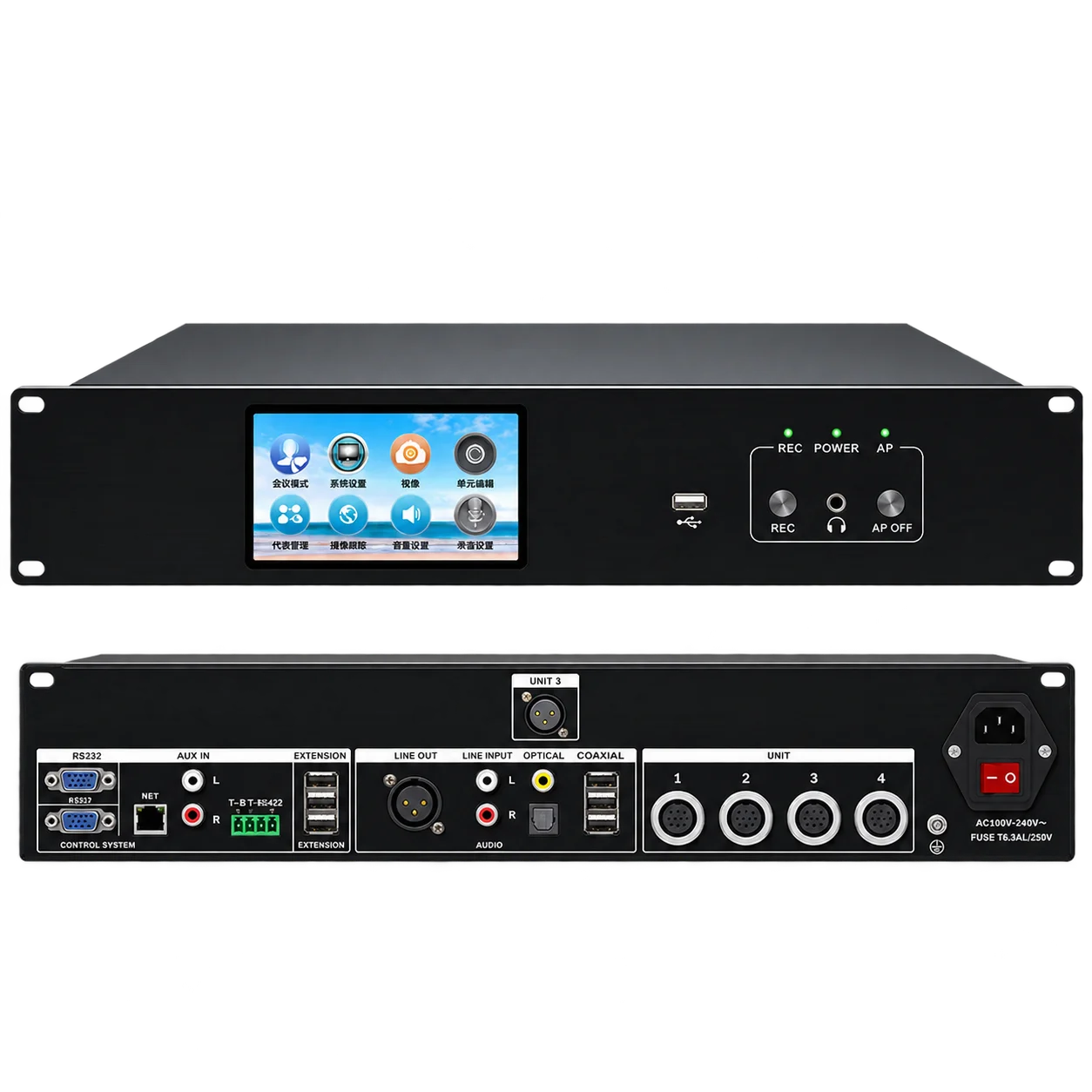

Synoveta SV-DWC-C800S Digital Conference System Controller
System Controller
Manufacturer referencePricingOn request
Recommended useBoardrooms, council chambers, government offices, training rooms and professional meeting spaces
- Standard 2U chassis design. One CAT6 network cable transmits 64 channels of audio and information, supporting both wired and wireless conferences.
- Adaptive interference-avoidance technology provides strong anti-interference capability. Based on IEEE 802.11n Wi-Fi 6, it supports 2.4 GHz and 5 GHz wireless signals.
- Supports up to 5,300 wired conference units and 300 wireless conference units, with up to 14 microphones speaking simultaneously: 8 wired and 6 wireless.
- Built-in high-performance DSP processor supports 10-band EQ, delay, volume and other host-output adjustments; optional howling suppression is supported.
Installation planning
Cabling, mounting and system integration guidance.
Delivery support
Project scheduling and delivery coordination across Bangladesh.
After-sales support
Technical assistance after installation and handover.
Product highlights
Standard 2U chassis design. One CAT6 network cable transmits 64 channels of audio and information, supporting both wired and wireless conferences.
Adaptive interference-avoidance technology provides strong anti-interference capability. Based on IEEE 802.11n Wi-Fi 6, it supports 2.4 GHz and 5 GHz wireless signals.
Supports up to 5,300 wired conference units and 300 wireless conference units, with up to 14 microphones speaking simultaneously: 8 wired and 6 wireless.
Built-in high-performance DSP processor supports 10-band EQ, delay, volume and other host-output adjustments; optional howling suppression is supported.
Four microphone management modes are supported: FIFO (first in, first out), NORMAL, VOICE (voice control) and APPLY (application mode).
Audio interfaces include one RCA and one XLR input plus one RCA and one XLR output. Output channels support EQ, delay and volume adjustment, with optical-fiber and coaxial audio outputs.
Supports USB flash-drive recording with advanced noise elimination, one-button recording from the front panel, recording-status indication and host headphone monitoring.
Supports docking with voice-transcription equipment to achieve role separation.
Product overview
High-capacity digital conference system controller supporting both wired and wireless conference units.
Technical specifications
Final specifications can vary by selected brand, model and project configuration.
- Brand
- Synoveta
- Model
- SV-DWC-C800S
- Product type
- System Controller
- System technology
- Wi-Fi Wireless Conference
- Application
- Boardrooms, council chambers, government offices, training rooms and professional meeting spaces
- Availability
- Contact for availability
- Microphone capacity
- Wired microphones ≤5,300; wireless microphones ≤300
- Simultaneous interpretation channels
- 63 + 1 channels
- Frequency response
- 80 Hz–16 kHz
- Signal-to-noise ratio
- >80 dB(A)
- Dynamic range
- >80 dB
- Total harmonic distortion
- <0.05%
View 9 more specifications
- Main power supply
- Wide-range power supply: 100–240 VAC
- EXTENSION port
- Connects conference-system expansion equipment
- AP network port
- Connects a wireless access point
- PC network port
- Connects a computer
- Static power consumption
- 30 W
- Output power consumption
- 150 W
- Wired microphone connection method
- Dedicated cable
- Touch-screen control
- 4.3-inch full-color touch screen
- UNIT
- 4 Ã- 6-core aviation interfaces
