Home / LED Display / Huidu HD A6L LED Controller
Buy Huidu HD A6L LED Controller in Bangladesh from Renex Digital. This High-capacity Asynchronous LED Controller is suitable for led display projects. Get BOQ-based quotation, installation support and after-sales service across Bangladesh.
Related pages
Explore controller options, LED system planning and project references in Bangladesh.
What you get from Renex Digital
- - Controller selection based on module, cabinet and screen resolution
- - Receiving card mapping and basic commissioning guidance
- - Signal flow, redundancy and compatibility support
- - After-sales service and spare planning for stable operation

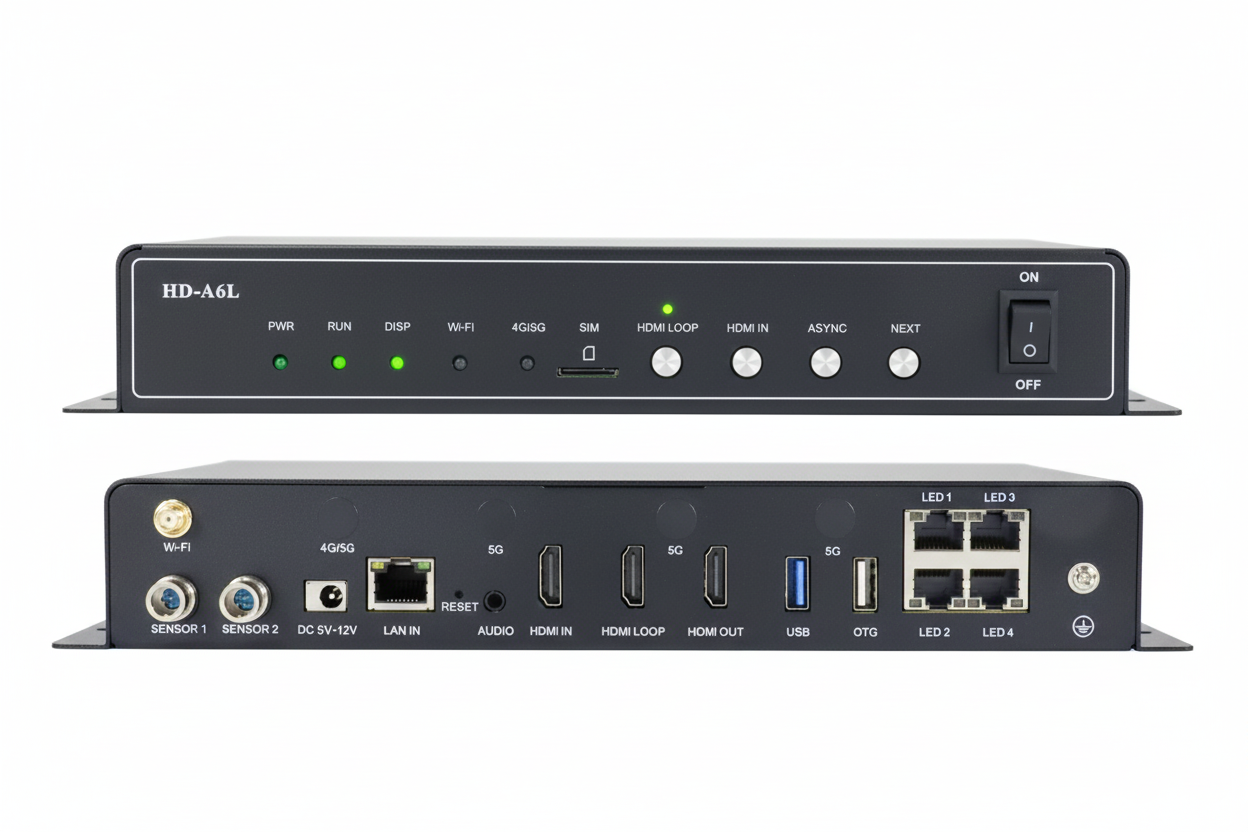

Huidu HD A6L LED Controller
Product specifications and description
Key Features
- - Massive loading capacity: Supports up to 896×512 pixels.
- - Built-in 16GB storage — store large videos and playlists.
- - Supports cloud control, Wi-Fi, LAN, USB & optional 4G.
- - Full HD 1080p hardware decoding with smooth playback.
- - Ideal for medium to large LED displays & digital signage.
- - Multi-window layout (up to 6 areas) for advanced programming.
- - Compatible with all HUB75 / HUB75E indoor & outdoor modules.
- - Perfect for 24/7 commercial LED display operation.
- - High-speed processing with fast content switching.
- - Supports ambient light sensor for auto brightness control.
- - Best choice for professional shop signage & outdoor LED boards.
| Controller Type | Asynchronous Full-Color LED Control Card |
| Max Loading Capacity | 896 × 512 pixels (super high load) |
| Supported LED Modules | All HUB75 / HUB75E indoor & outdoor modules |
| Internal Storage | 16GB EMMC Storage |
| Extra Storage Support | USB expand supported |
| Communication Methods | LAN / Wi-Fi / USB / 4G (optional module) / Cloud |
| Video Decoding Capability | Full HD 1080p hardware decoding |
| Graphics Engine | High-performance multi-core processor |
| Supported Scan Types | Static, 1/2, 1/4, 1/8, 1/16, 1/32 scan (module dependent) |
| Multi-Window Support | Up to 6 programmable content areas |
| Programs Supported | Scrolling text, videos, images, clock, countdown, logo display |
| Cloud Control | Fully supported (Huidu HD-CMS platform) |
| Mobile App Support | LEDArt, HDPlayer mobile version |
| Software Compatibility | HDPlayer / LEDArt / HD-CMS / Mobile App |
| Brightness Adjustment | Automatic & manual (ambient brightness sensor supported) |
| Audio Output | Yes (synchronized audio) |
| Play Mode | Loop, schedule, timing, calendar mode |
| Working Voltage | DC 5V |
| Power Consumption | = 3W |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +80°C |
| Certifications | CE / ROHS / EMC |
